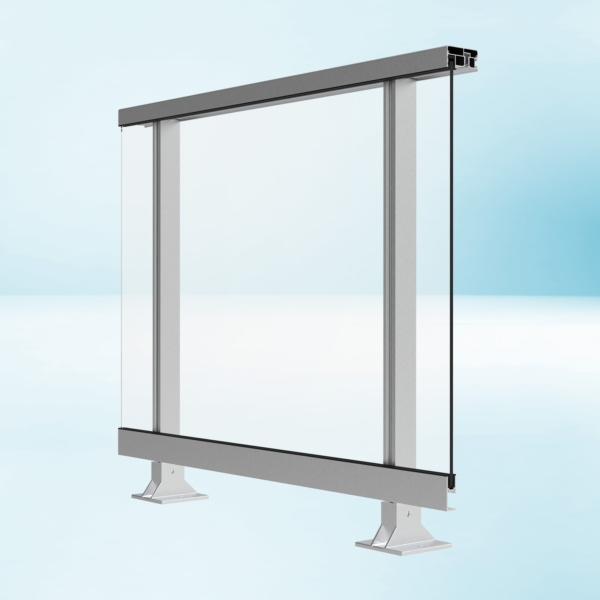

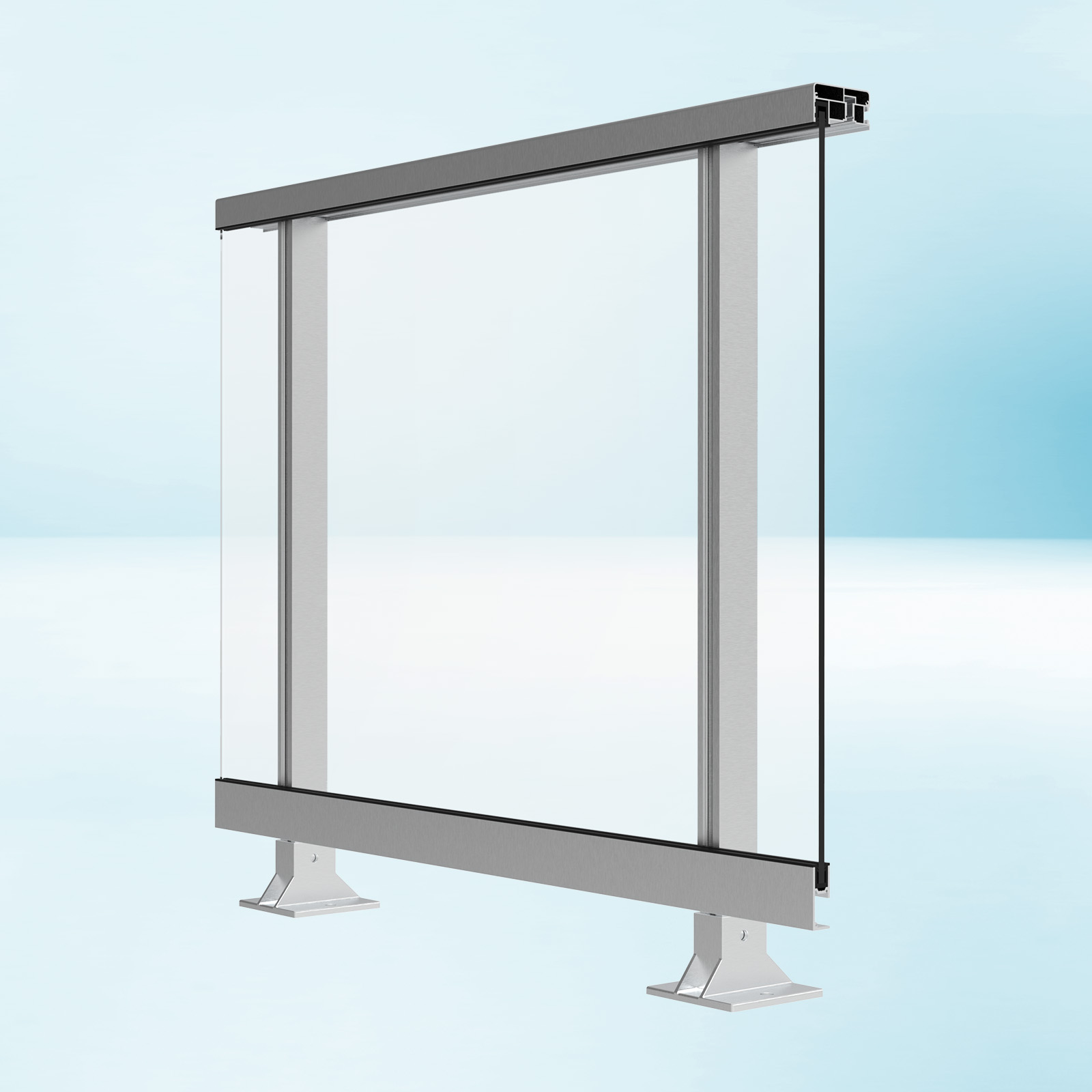

Railings
KEY POINTS
-
Hand Rail (Type-3): 3 7/8” × 1 5/8” profile
-
Posts: 1 1/2” × 2 1/2” aluminum section
-
Bottom Rail (Type-2): with matching holders and surface-mount options
-
Mounting Options:
– Floor Mount (base plate cast, by-pass bracket)
– Face Mount (fabricated plate)
-
Accessories: Post caps, rail holders, and end caps available
-
Material: Aluminum 6063-T6 for strength and weather resistance
-
Commercial balconies and terraces
-
Institutional environments such as schools, healthcare, and public facilities
-
Residential guardrails and stair systems
-
Interior atriums and staircases requiring safety with transparency
Product specification
Architectural and product details
Technical information
Architectural and product details
Railing Systems-Proposal
Railing Systems-Proposal
Balcony Railing Systems.pdf
Balcony Railing Systems.dwg • Structural aluminum components (6063-T6 alloy) • Handrail, post, and bottom rail assemblies designed for modular installation • Multiple mounting options for floor or face conditions • Compatible with Windspec entrances, panels, and framing systems • Low-maintenance, corrosion-resistant finishes
