Curtain Wall 5500 HTP

Curtain Wall 5500 HTP

Curtain Wall 5500 HTP
Curtain Wall 5500 HTP - Image 2

KEY POINTS

  • High Performance Thermal Break
  • Pressure equalized rainscreen design
  • Exterior glazed

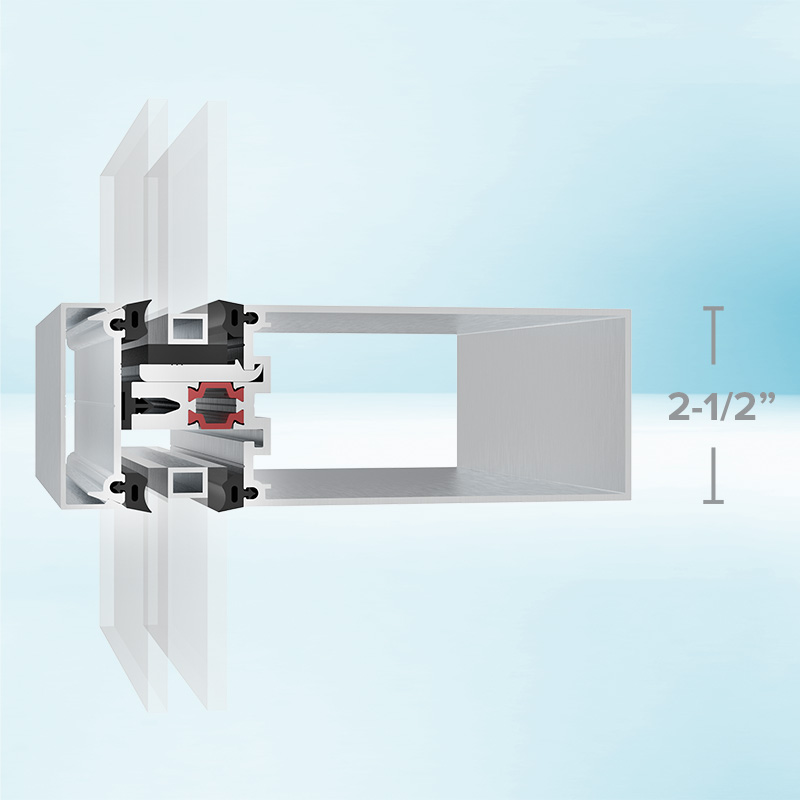

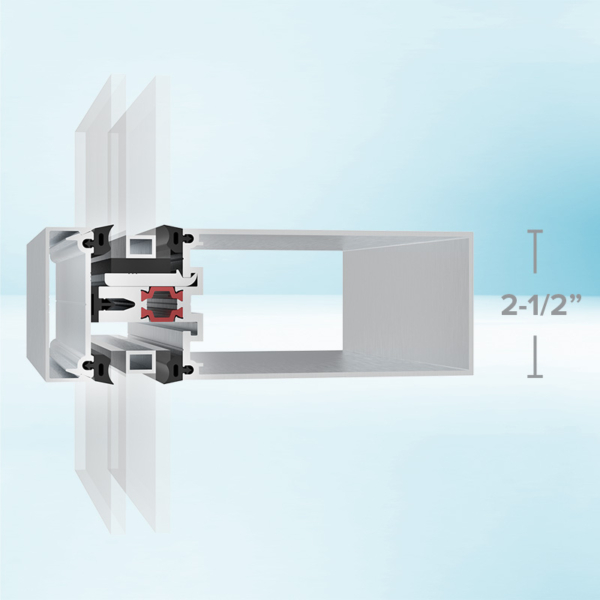

  • 2-1/2″ sightline
  • Accomodates 1″ double or 1-3/4″ triple glazed units
  • Mullion depths range from 2-7/8″” to 10″
  • Captured and SSG styles available in all styles
  • Foot anchor system available
  • Compatible with a variety of Windspec doors and operable windows
  • Available in anodized and painted finishes
Download the Product Data Sheet
Click Here to see examples in the Gallery
Category Tag

Overview

The 5500HTP maintains the aesthetic and structural properties of the 5500 series curtainwall. Utilizing a glass-reinforced nylon thermal break with double or triple glazing options, the 5500HTP is ideal for projects with strict thermal requirements.

Applications

Medium to high-rise commercial buildings including retail, office, health care and institutional applications.
Modern-look, high-end residential requiring high thermal performance

Curtain Wall 5500 HTP
Curtain Wall 5500 HTP - Image 2

Product specification

5500 HTP Series Catalog 2025 5500 HTP Series Drawing 2025 5500 HTP Series - Parts Lists 5500 HTP New SSG Door Adaptor A 5500 HTP Series Datasheet 2025 5500 HTP Series Manual Foot Anchor Catalog 2026.dwg Foot Anchor Catalog 2026.pdf
post_id = 6355
shortcode ran = yes

Array
(
    [0] => Array
        (
            [technical_information_files] => https://windspec.com/wp-content/uploads/2023/11/Windspec-5500HTP-Condensation-Report-Double-Glazed.pdf
            [product_name] => 5500HTP Condensation Report Double Glazed
        )

    [1] => Array
        (
            [technical_information_files] => https://windspec.com/wp-content/uploads/2023/11/Windspec-5500HTP-Condensation-Report-Triple-Glazed.pdf
            [product_name] => 5500HTP Condensation Report Triple Glazed
        )

    [2] => Array
        (
            [technical_information_files] => https://windspec.com/wp-content/uploads/2023/11/Windspec-5500HTP-NAFS-Test-Report.pdf
            [product_name] =>  5500HTP NAFS Test Report
        )

    [3] => Array
        (
            [technical_information_files] => https://windspec.com/wp-content/uploads/2023/11/Windspec-5500HTP-NFRC-Thermal-Simulation.pdf
            [product_name] => 5500HTP NFRC Thermal Simulation
        )

    [4] => Array
        (
            [technical_information_files] => https://windspec.com/wp-content/uploads/2023/11/windspec.com-curtain-wall-5500-windspec-foot-anchors-datasheet-august-10-v4.pdf
            [product_name] => Foot Anchor Datasheet 2026.pdf
        )

    [5] => Array
        (
            [technical_information_files] => https://windspec.com/wp-content/uploads/2023/11/windspec.com-curtain-wall-5500-htp-5500-htp-windspec-datasheet-july-2025-2-1.pdf
            [product_name] => 5500 HTP Datasheet.pdf
        )

)
PDF 5500HTP Condensation Report Double Glazed PDF 5500HTP Condensation Report Triple Glazed PDF 5500HTP NAFS Test Report PDF 5500HTP NFRC Thermal Simulation PDF Foot Anchor Datasheet 2026.pdf PDF 5500 HTP Datasheet.pdf
